Marine Pumps: The Indispensable Lifeblood Powering Global Maritime Vessels

Marine pumps stand as the most extensively used and diversified core equipment across all types of ships, serving as the unshakable “lifeblood” that sustains the normal operation of maritime vessels. For a standard diesel-powered cargo ship alone, 36 to 50 marine pumps of various specifications are required, accounting for 20% to 30% of the ship’s total mechanical equipment. As a professional supplier of marine pump solutions, we cover a full range of marine pump models, providing one-stop procurement and supporting services for global maritime customers.

Marine pumps are specialized mechanical devices designed for marine environments, engineered to boost the pressure and potential energy of liquids and liquid materials to achieve efficient transportation and circulation. On board ships, they undertake the critical task of conveying all types of media including seawater, fresh water, sewage, lubricating oil, and fuel oil, forming an indispensable part of the ship’s cooling, lubrication, water supply and drainage, and power support systems. Given the special working conditions of ships—such as rolling and tilting during navigation—marine pumps must be designed to avoid cavitation caused by the fluctuation of the suction liquid surface, ensuring stable and reliable operation in harsh marine environments. In terms of structural design, vertical structures are widely adopted to reduce floor space and facilitate on-board maintenance; key flow passage components are precision-manufactured from corrosion-resistant materials such as bronze, brass, and stainless steel, effectively resisting the erosion of seawater and corrosive media and extending the service life of the equipment.

To meet the diverse operational needs of different ships and marine working conditions, marine pumps are classified into multiple categories based on their working principles, each with unique structural characteristics and application scenarios. We offer a complete product line covering all mainstream marine pump types, and our cooperative brands include internationally renowned manufacturers such as TAIKO, NANIWA, SHINKO, SHINSHIN, TEIKOKU, ISHII, HEISHI, as well as well-known global brands like BOSCHREXROTH, HAMWORTH, WOMA, KSB, EATHON, IMO, WILO, ALLWEILER, JOWA, HOYER, HYUNDAI, ALLBORG, SIEMENS, KAWASAKI, MITSUBISHI, while also providing high-quality domestic marine pump models such as CIS, CLZ, CLH, CWZ, CWX, CS, and CWL, fully satisfying the personalized procurement needs of global customers.

Positive Displacement Pumps: High-Pressure Precision Conveyance for Key Media

Relying on the periodic change of working volume driven by the movement of internal working parts, positive displacement pumps realize liquid suction and discharge—drawing in liquid when the working volume expands and pressure drops, and discharging liquid when the working volume contracts and pressure rises, directly increasing liquid pressure through compression. This category is further divided into reciprocating pumps (piston pumps, plunger pumps) and rotary pumps (gear pumps, screw pumps, vane pumps), which are ideal for the high-pressure, small-flow conveyance of key media such as ship lubricating oil and fuel oil. Our positive displacement pump portfolio covers a wealth of models from cooperative brands, including TAIKO’s 3MT-32, BFT-40, CHNR-50, NANIWA’s ALG-20, BBH-32, SHINKO’s GVD-400S, GVP-400S, and SHINSHIN’s B80VID1, EHC40A, meeting the high-precision conveyance requirements of various ship systems.

Vane Pumps: The Most Widely Used Core Pump Type for Marine Applications

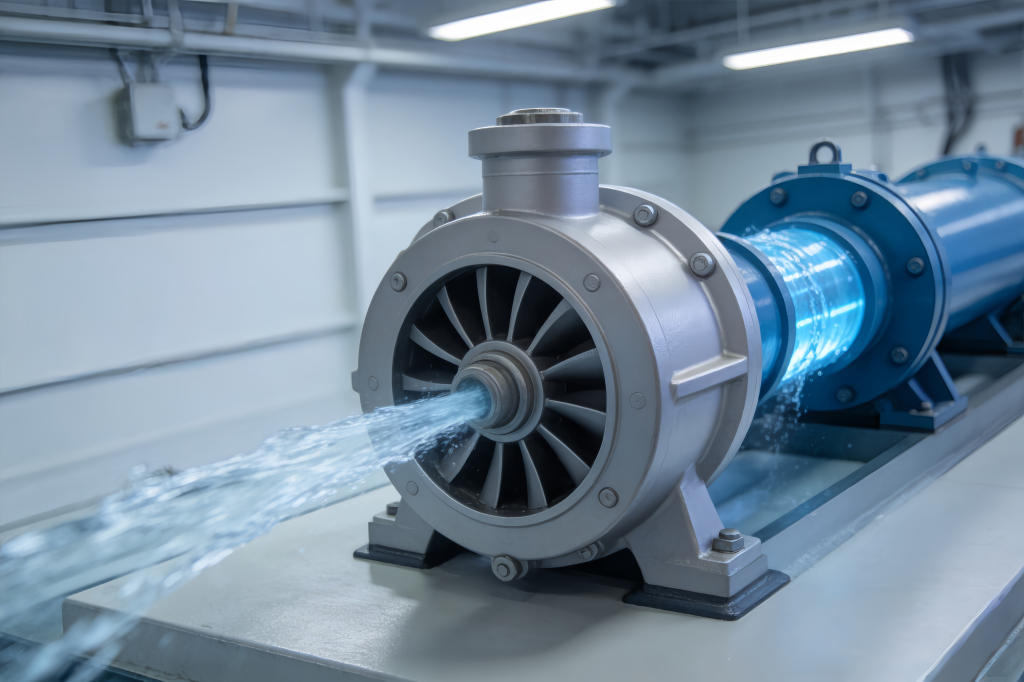

Vane pumps drive liquid to rotate at high speed through an impeller, continuously generating suction and discharge effects to transfer mechanical energy to the conveyed liquid, thereby increasing its pressure and achieving large-flow liquid transportation. Classified into centrifugal pumps and vortex pumps based on impeller and flow channel structure, centrifugal pumps are the most commonly used vane pumps in the maritime industry, widely applied in ship seawater cooling, fresh water supply, and sewage discharge due to their advantages of large flow, stable operation, and easy maintenance. We stock a full range of marine vane pump models, including TEIKOKU’s 32MS-B, 100HC-B, ISHII’s 100-CSBII-1, 1502CMA-1V, HEISHI’s CY-12GN, HCY-0.5F, and KSB’s CHPK832-200, RSV-80-250A, covering all flow and pressure specifications to adapt to different ship tonnages and operational scenarios.

Jet Pumps: Efficient Conveyance for Special Marine Working Conditions

Jet pumps utilize pressurized working fluid to form a high-speed jet in the nozzle, realizing energy transfer and liquid conveyance through momentum exchange between the jet fluid and the conveyed medium. Divided into water jet pumps, steam jet pumps, air jet pumps, etc., according to the working fluid, they are widely used in special marine working conditions such as ship bilge pumping and deep well water intake due to their simple structure, no moving parts, and strong adaptability. Our jet pump solutions include professional models from international brands such as WOMA’s 1002 P26, IMO’s ACE038K, ACE25-2NC, and ALLWEILER’s SNH660R547121-W3, ensuring efficient and stable operation in complex marine working conditions.

In addition to classify by working principle, marine pumps can also be categorized by pump shaft position (vertical pumps, horizontal pumps), number of suction ports (single-suction pumps, double-suction pumps), and prime mover type (electric pumps, steam pumps, diesel engine pumps). In marine applications, pumps are more commonly named by their functional purposes, such as main engine seawater cooling pump, main engine lubricating oil pump, ship fresh water pump, and sewage discharge pump—nomenclatures that directly reflect their application scenarios on board. We have a professional technical and sales team that can provide customers with customized product matching solutions according to the ship’s type, tonnage, functional requirements, and operating environment, from model selection and procurement to after-sales technical support, creating a worry-free one-stop service experience.

As a professional foreign trade enterprise focusing on the marine pump industry, we have established long-term and stable cooperative relationships with all the above-mentioned well-known marine pump brands, with reliable supply channels, competitive product prices, and perfect after-sales service systems. Our products are exported to all major maritime regions around the world, serving shipbuilding yards, ship operation and maintenance enterprises, marine engineering companies, and other customers in the global maritime industry.

We are committed to providing global maritime customers with high-quality, high-reliability marine pump products and professional, customized solution services, helping customers optimize the operation efficiency of ship equipment, reduce maintenance costs, and ensure the safe and stable navigation of vessels. Whether it is standard marine pump models or customized supporting solutions, we have the strength and experience to meet your diverse needs. Welcome to contact us for product consultation and procurement cooperation, and let us explore together to empower the global maritime industry with our integrated marine pump solutions!
