Double-suction Split-case Pump

Features

Pump body:

• Body is a volute type to ensure that the fluid flows with constant speed in the pump body
• The design pressure of the pump body is 1.6 Mpa and 2.0 Mpa
• The pump body is horizontally split casting type, the inlet and outlet flanges of the pump body are located in the lower part of pump body, so that the rotor can be taken out for maintenance without dismantle of system`s piping
• Part of pump body adopts dual flow channel design to reduce the radial force, thereby extending the life of mechanical seal and bearing
• Middle opening flange face employs gasket sea
• The connection between upper and lower parts of the pump will use pins for the precise positioning to reduce assembly errors, thus ensure pump hydraulic and mechanical performance
• Pump body will conduct hydrostatic test at test pressure of 1.5 times working pressure

Impeller:

• In the structure design, the impeller, sleeve, and shaft will adopt the reliable key connection and lock externally at the packing body by lock nut, making it easy to be positioned. The balanced rotor of the whole pump ensures smooth pump operation

Wear ring:

• Both the pump body and impeller are equipped with a replaceable wear ring, which prevents wear of the pump and impeller, and is easy to replace. This results in low maintenance costs and, at the same time, ensures proper clearance and high operating efficiency. The impeller wear ring is optional

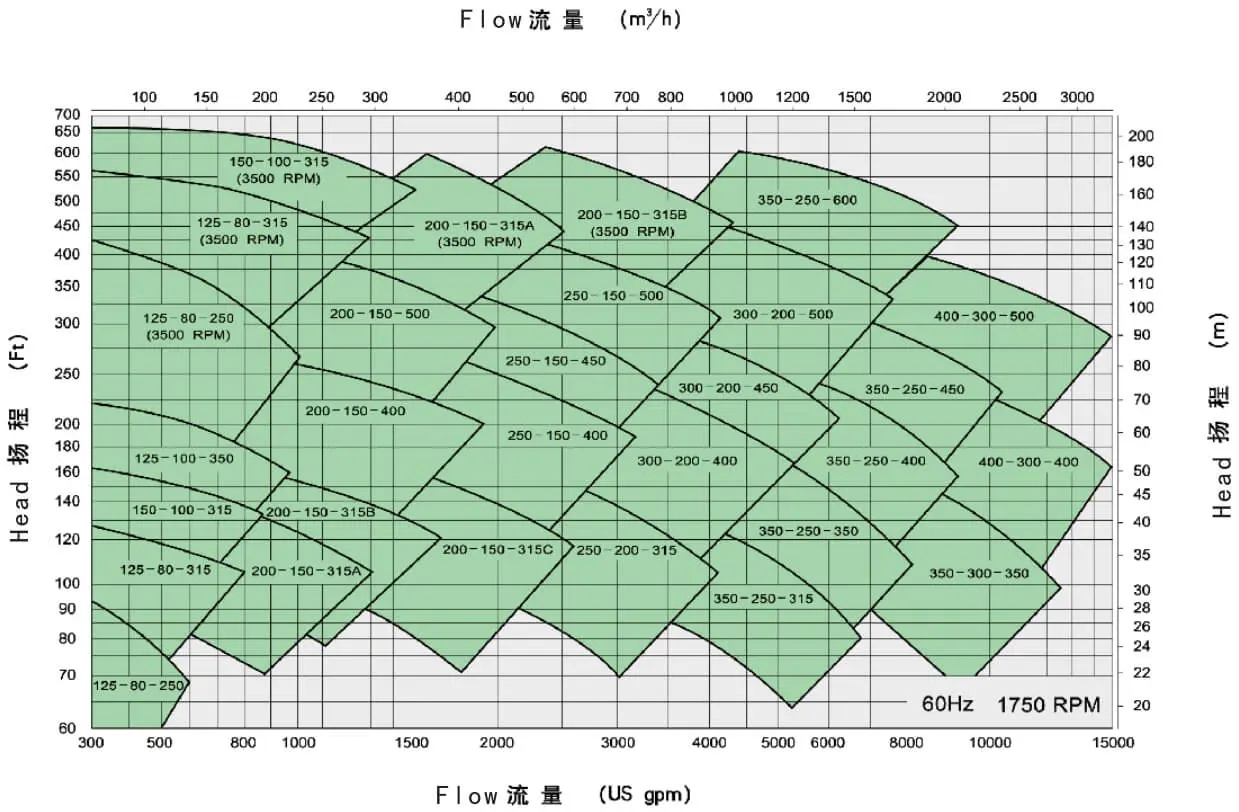

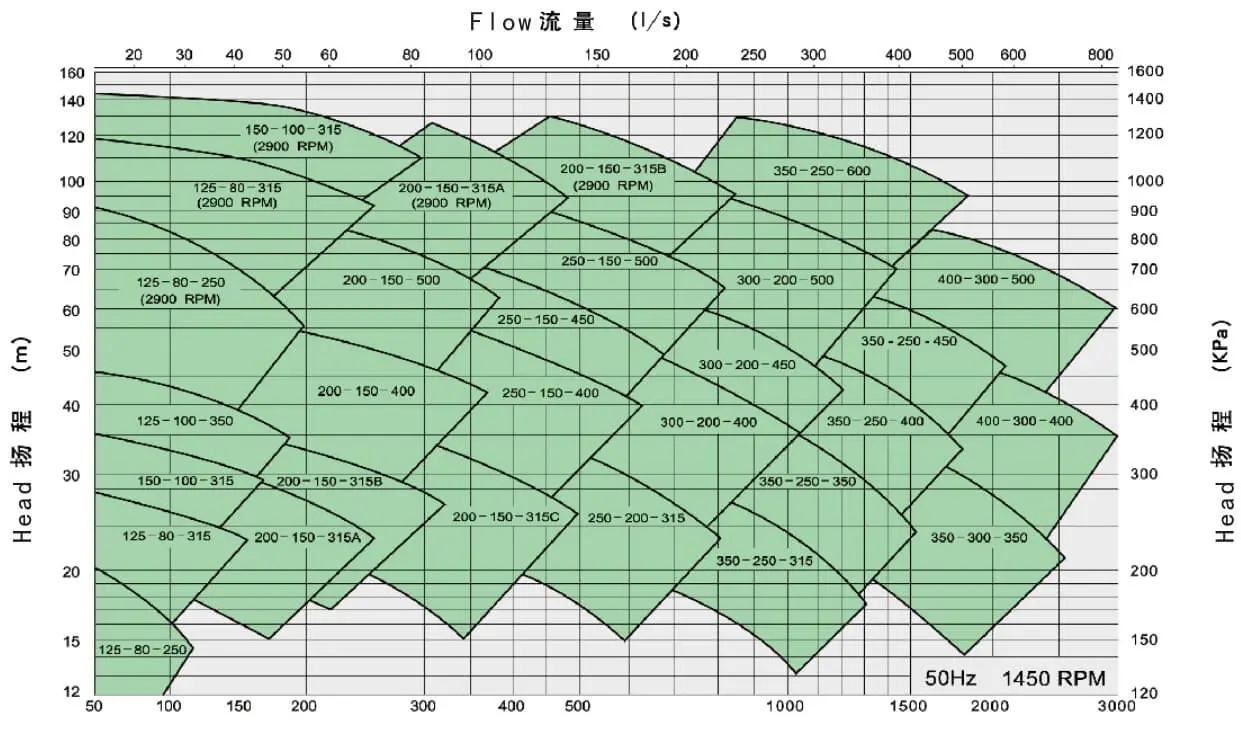

Coverage Chart
