Features
- Customize technical solutions and design the profile basket upon type of product and plant condition; the final design drawing should be agreed by both party.
- Full automatic operation on deposit and pick up profiles from baskets.
- Able to work with three different standard cycles.
Tehcncial data

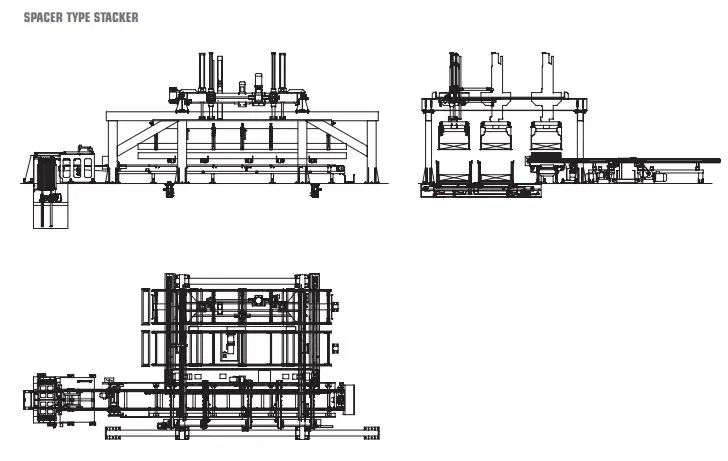

| Type | This is a overhead stacker with 3-axis, with servo motors and automatic feeding system of spacers |
| Max. profile length | 9,000mm |
| Min. profile length | 1,200mm |
| Max. profile layer width | 1,000mm |
| Max. cross conveying speed | approx. 600 mm/sec |
| Max. Lifting speed | approx. 300 mm/sec |
| Vices pitch | 1200 mm |
| Stacking cycle time | ≤ 35s |
