End Suction Pump

  • Optimized for high-capacity performance through a one-piece casing with tangential discharge.
  • High efficiency enabled by a precision-cast, closed impeller with machine shrouds and balance holes that also minimize axial thrust.
  • An open-seal chamber with integral vortex-breaking ribs, not only extends the life of the mechanical seal but also reduces the overall cost of ownership
  • Maintenance and inspection are made easier with a back pullout design

For product pricing, customization, or other inquiries:

Share to

Workflow:

  • Angular contact ball bearings: Angular contact ball bearings mounted back to back can better balance axial forces, Ensure that the bearing life of more than 50,000 hours, safety and reliable.
  • Thin oil lubrication: If user needs, This series can adopt thin oil to lubricate bearings, bearing life is more than 50,000 hours
  • Oil temperature gauge: It is used to display the oil level of lubricating oil in the bearing body. lf user needs, the oil level gaugecan also display problem of lubricating oil.
  • Labyrinth seal: It prevents from moisture and dust in the air into the bearing body to ensure performance of lubricating oil of bearing
  • Cooling of mechanical seal chamber: It can ensure the normal operation of the mechanical seal when transporting high-temperature liquids.
  • Bearing body cooling: It is applicable to transport liquids over 110℃
  • Corrosion allowance > 3 mm: It ensures longer corrosion-resistant life

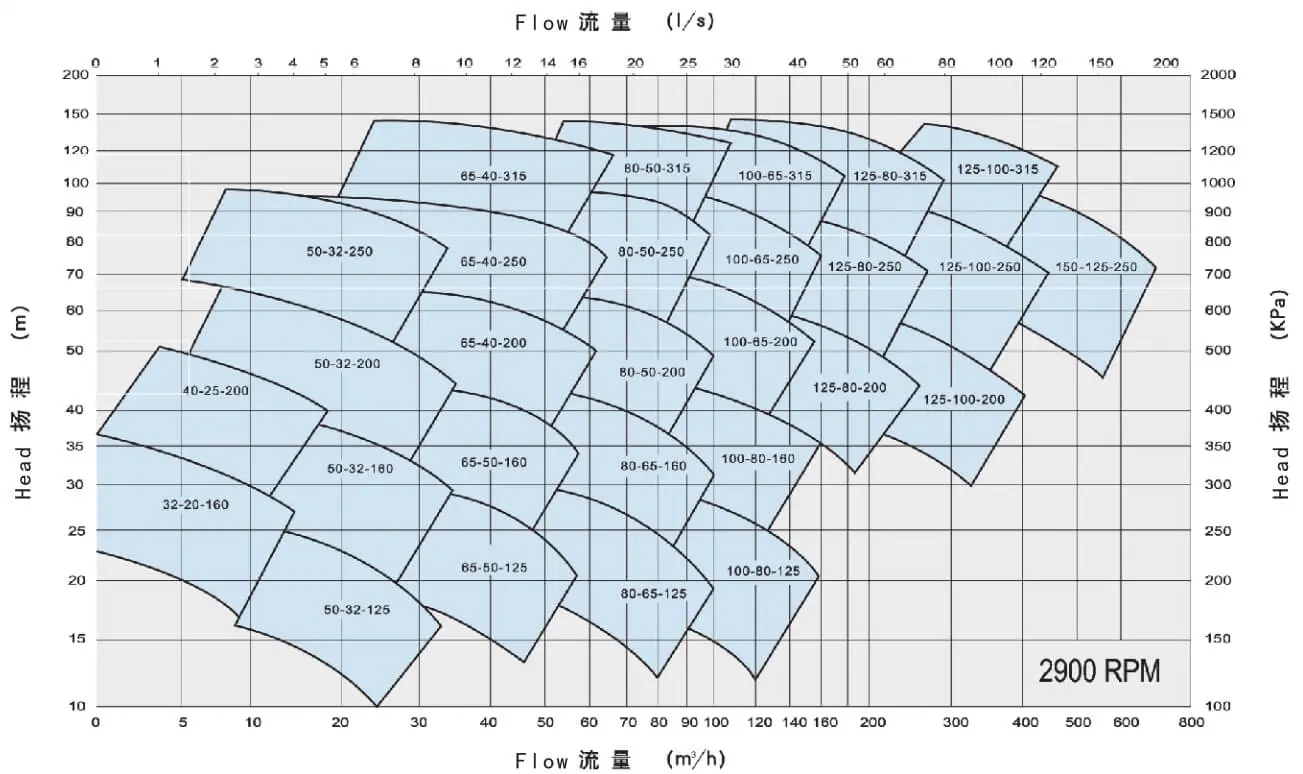

Coverage Chart
