Vertical Inline Centrifugal Pump
Optional Dual flow channels design: Some pump body adopts the dual-channels design to reduce the radial force, thereby extends mechanicalsealand bearing life ofmotor PN 16 standard flange: It can also select other standard such as ANSl and JIS to meet
Description
Optional
- It can be used outdoors with the addition of a protective cover
- The pump can operate in series or parallel configurations to meet specific requirements for flow and head
- Verticaldirect connect design: Pump design adopts the way extend the motor shaft to direct drive of the impeller, cancel the support part of rotor of general centrifugal pump, and no need coupling, Impeller and motor operates in same shaft, in order to run smoothly, small vibration,low noise.
- Because it is vertical direct connection design, it occupies small space, light weight, because of the same inlet and outlet dimensions, so the application isextremely convenient
- Strong exchangeability of parts: Lower parts inventory

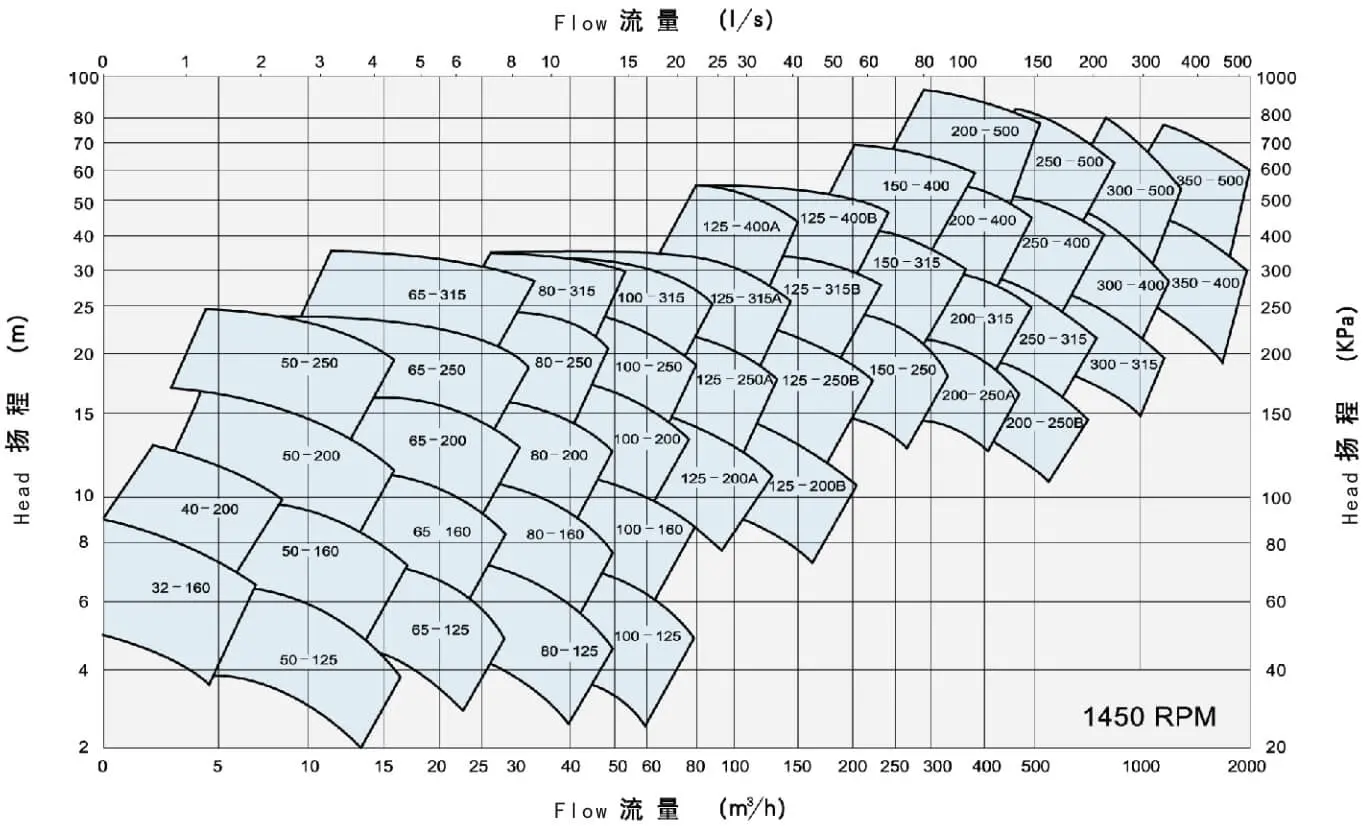

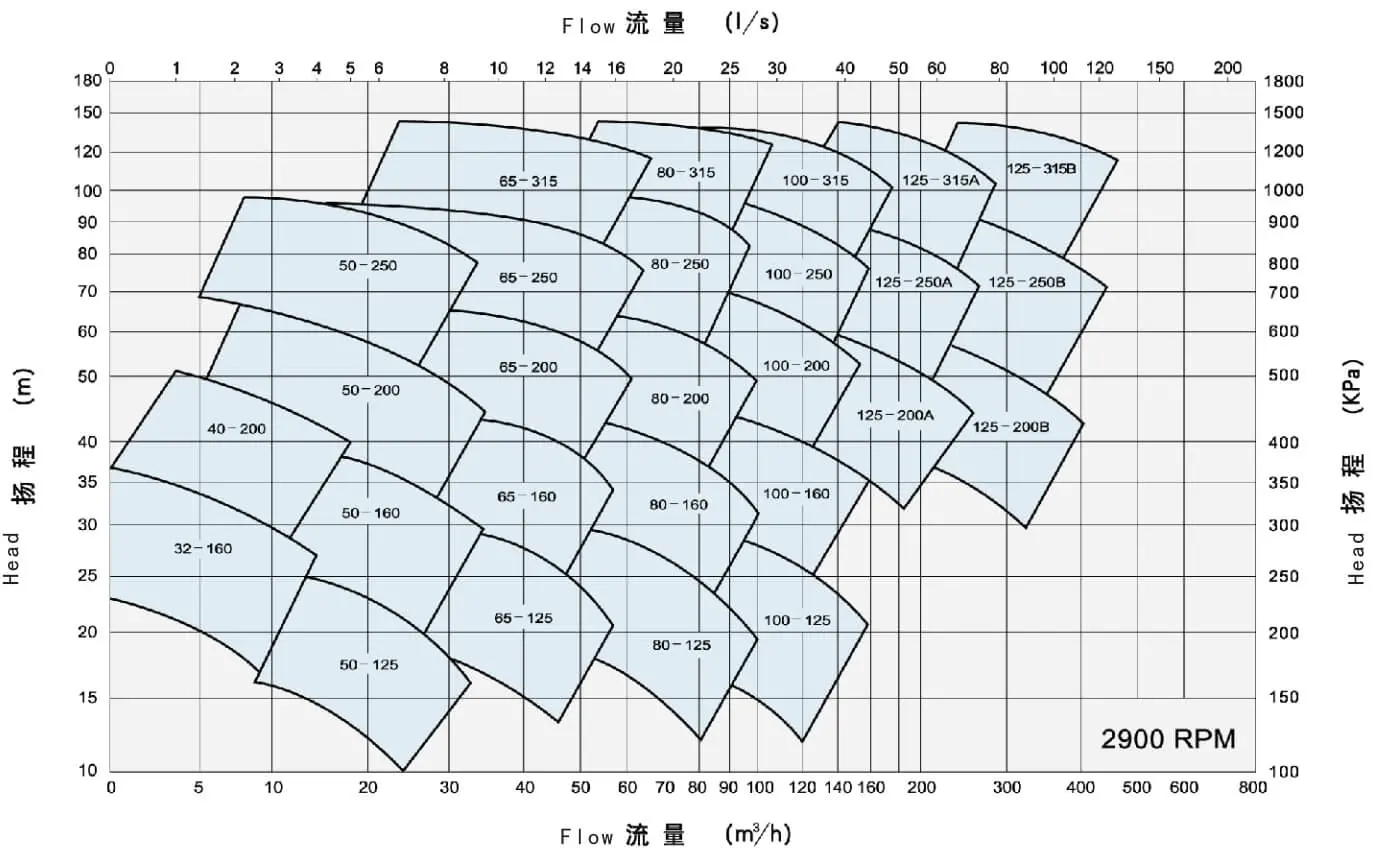

Coverage Chart
