Liquid Ring Vacuum Pump
- Petrochemical: Desulfurization,dewaxing, medium transportation, offgas recovery, compress
- Chemical & food: Distillation, concentrated, crystallization, dry, degassing
- Medical: Sterilization, disinfection
- Power: Emission of Turbine`s condenser
- Metallurgy: Steel degassing
- Mining: Gas emission
Description
Features
- Vacumm pressure ranges from 33 mbar to 1013 mbar.
- Gas emmision ranges from 3 to 20400 m3
- Near-isothermal compression, pollution-free.
- No lubrication required in the working chamber, thus absolutely oil-free.
- Capable of handling nearly all gases and vapors.
- Able to process small amounts of entrained liquids.
- Easy maintenance, high reliability.
- Low noise, virtually no vibration.
-
wide choice of materials, therefore applicable nearly everywhere.
Technical Data
| Description | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | Type 6 |
| Synchronous speed 50 Hz | 1500 rpm | |||||
| Max. compression over atmospheric pressure | 0.3 bar | 0.3 (0.5*) bar | ||||
| Max. admissible pressure difference | 1.1 bar | 1.1 (1.5*) bar | ||||
| Pressure test (above atmospheric pressure) | 3 bar | |||||
| Moment of inertia of rotating parts when full of water | 0.035 Kg. m² | 0.053 Kg. m² | 0.069 Kg. m² | 0.097 Kg. m² | 0.14 Kg. m² | 0.21 Kg. m² |
| Noise level at a suction pressure of 80 mbar | 65 dB (A) | 70 dB (A) | 72 dB (A) | |||
| Max. gas temperature (Dry gas) | 200 °C | |||||
| Max. gas temperature (Saturated gas) | 100 °C | |||||
| Max. recommended temperature for water as working liquid | 40 °C | |||||
| Max. admissible temperature for other suitable working fluids | 80 °C | |||||
| Max. kinematic viscosity | 4 mm²/s | |||||
| Max. density | 1200 kg/m³ | |||||
| Volume up to shaft level | 2.4 liter | 2.8 liter | 3.2 liter | 4.0 liter | 4.3 liter | 4.7 liter |

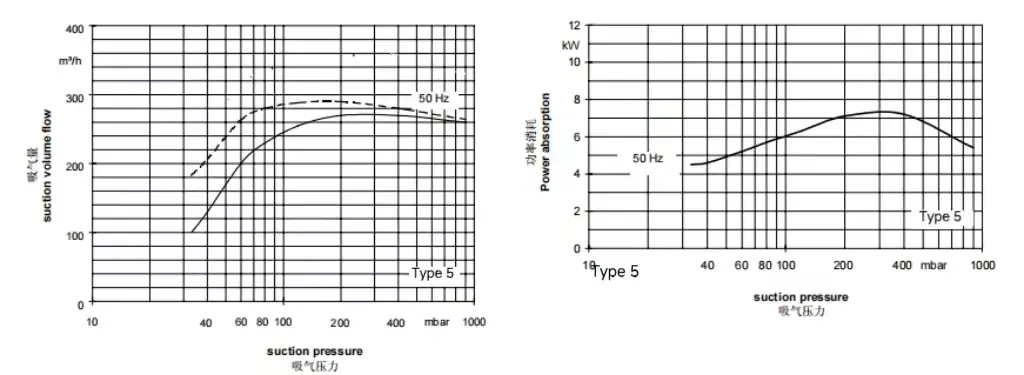

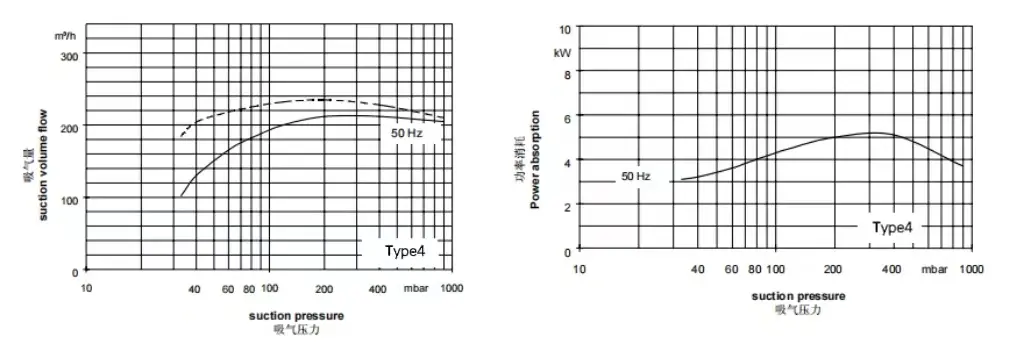

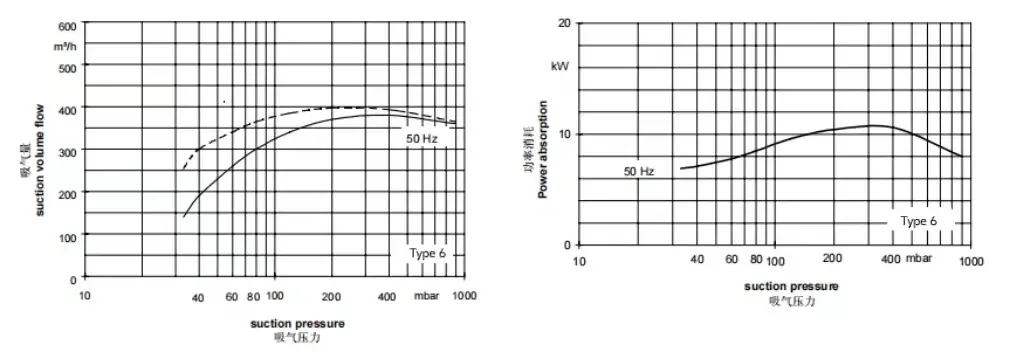

Performance Curves
Reference
- Bayer
- Novartis
- BASF
- Degussa
- Dow
- Petrochina
- Sinopec
- Shell
- BP
