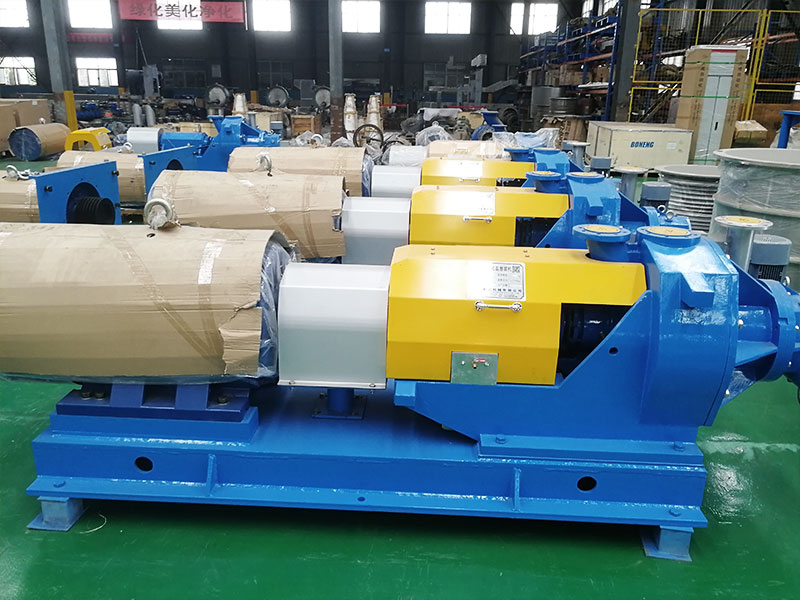

Double Disk Refiner

Double Disc Refiner is used for continuous refining of chemical woodpulp , mechanical pulp and waste paper pulp.The equipment is furnishedwith various segments bar pattern and automtic control system , theequipment can refine pulp with constant power or constant energyconsumption . the refining effect is stable.

For product pricing, customization, or other inquiries:

Share to

Description

Features

Specially designed rotary disc is self aligned automatically under the function of stock.
According to refining requirement, clearance is adjustable through electromechanical device.
Special tool for easy and fast change of refiner disc.
High strength welded structure to ensure stable and reliable operation.

Technical Data

Description	Type 1	Type 2	Type 3	Type 4	Type 5	Type 6	Type 7	Type 8
Disc Diameter (mm)	Φ 450	Φ500	Φ550	Φ600	Φ660	Φ720	Φ900	Φ110
Production(t/d)	8-80	10-100	10-120	12-150	15-200	15-250	20-400	40-800
Power (KW)	90-160	132-200	160-250	185-315	220-355	250-630	315-800	400-1250
Consistency(%)	3-5
